Genre: First Person Shooter
Engine: Katastroganoff (3D engine,
Self made using DirectX11)
Project Time: 15 Weeks, 50%
Team Size: 9
​
My Contributions
FPS Camera
In our game the mouse uses an FPS mode that when activated keeps track of the amount of change in position to create an angular delta to move the camera in. At the end of the frame the mouse is being re-centered to the screen to prevent the mouse from going off screen.
​
To prevent Gimbal lock, which would cause irrational spinning when performing a rotation in the y-axis while both the x and z axis are aligned. I restricted the amount of pitch to never exceed -/+89 degrees.
​
While this worked it did cause odd rotations around the z-axis which needed to be removed. To do this I used the cross product to create a right vector, using the cameras current forward vector and a new vector that pointed up in world space. These three vectors can now be inserted into the cameras transform to remove unwanted z-rotations, and now we have a classic FPS camera.
Weapons + PhysX Raycasting
Along with the creation of weapons i made an editor to customize its attributes;
- Damage
- Ammo Capacity
- X/Y spread
- Fire rate
- Reload Speed
- Auto/ Semi auto
​
For collision checks I used PhysX Scene Query Raycast function. Since we used an ECS for our gameplay logic all we needed was to find the ID of the entity hit and then apply damage to the selected enemy component.
Weapon Sway
To make the weapon feel natural to move around I implemented weapon swaying. I utilize the mouse delta to create a vector to push the weapon in the desired direction. And I use the players current velocity to push the weapons position on the x and z axis. The weapon will reset it's orientation if the mouse delta is to weak and when the player isn't moving, the weapon re-assumes its original position. I also made a the weapon bounce when landing on the ground after jumping.
Decal Manager
I pooled an amount of decals that we used to make bullet holes from where the raycasts hit. To make the decal properly angle itself outwards from the surface we use the surface normal provided from the PhysX raycast.
Bullet Casing Emitter
When the weapon is firing a bullet casing it thrown out of the gun. To do this a pool an amount of bullet models for each gun and then apply a force on it's velocity to make it look like it's being pushed out of the gun.
I didn't want the bullets to be positioned in relation to world space because of the risk that the bullets might clip through the weapon while the player is moving. So the bullets are moving in relation to the weapon models transform instead.
​
A final touch was to randomize the start velocity and direction each bullet moved in to make it look more naturally random.
​
​
Visual Script Editor

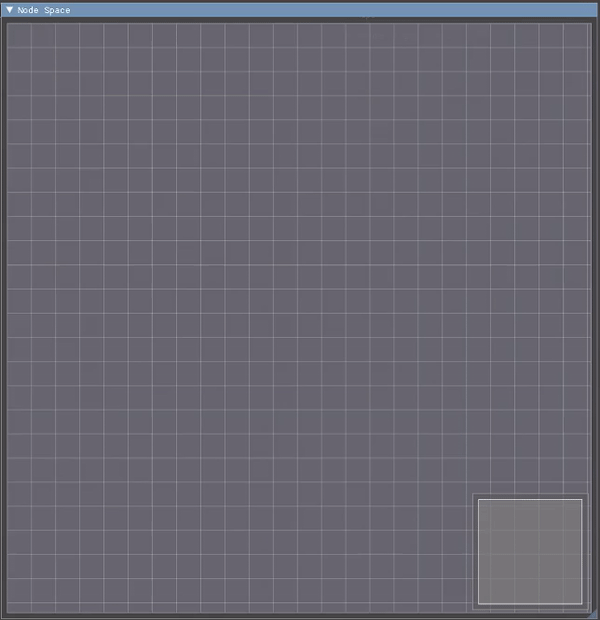

A simple visual script editor I made that our level designers used to spawn enemies in the final level. I used an extension to ImGui called ImNodes for the visuals and node related tools that it provided.
The tricky part to creating the graph tree was to define and keep track of all existing nodes, but to only iterate through connected nodes starting from the root node. I spent plenty of time refactoring the structure and readability of the code, while locating "edge case" bugs when deleting and creating new nodes.
​
​
Objectives
Our gameplay loop was heavily inspired by "High Hell" in that you needed to jump out of the building after completing all objectives. Me and the designers wanted the levels to be short and sweet and would only need easily accessible objectives to complete. And for that we have interactable and destructable objectives.
​
Ranged Enemies
For the ranged enemies I re-used the path finding logic from our previous game with the addition of shooting behavior. When seeing the player, the ranged enemy will start shooting and gradually rotate towards the player until it looses line of sight. For this I used physX raycasting for line of sight checks and if the ray hit a wall I re-scaled the VFX so that it wouldn't go through walls.
​
HUD
I made a simple health bar and ammo counter using our own text-renderer. The player system is subscribed to a Postmaster and updates the health bar when receiving a message that the player took damage or picked up a health kit.
​
The ammo text simply changes its text whenever the gun is fired or reloaded.
